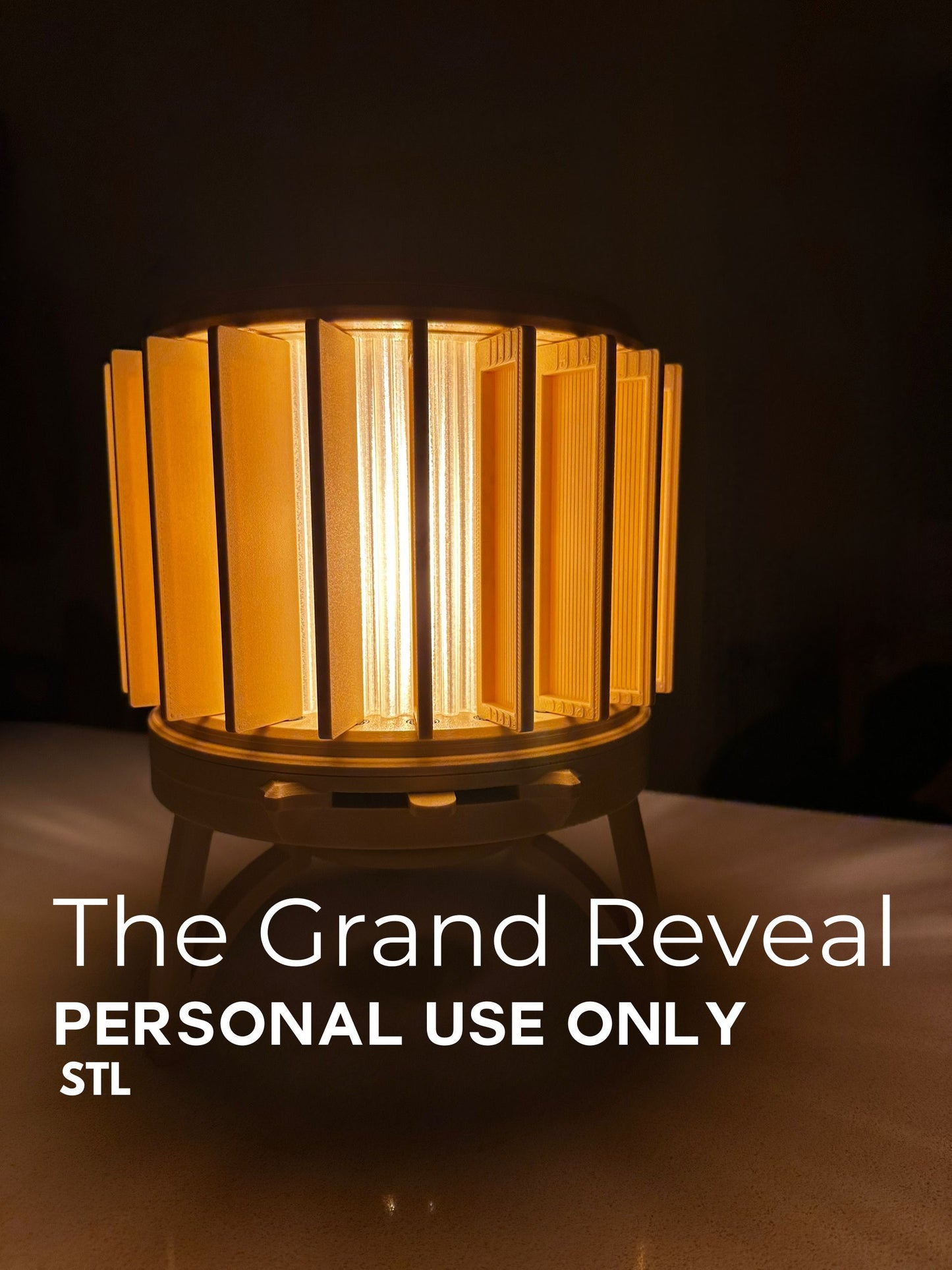

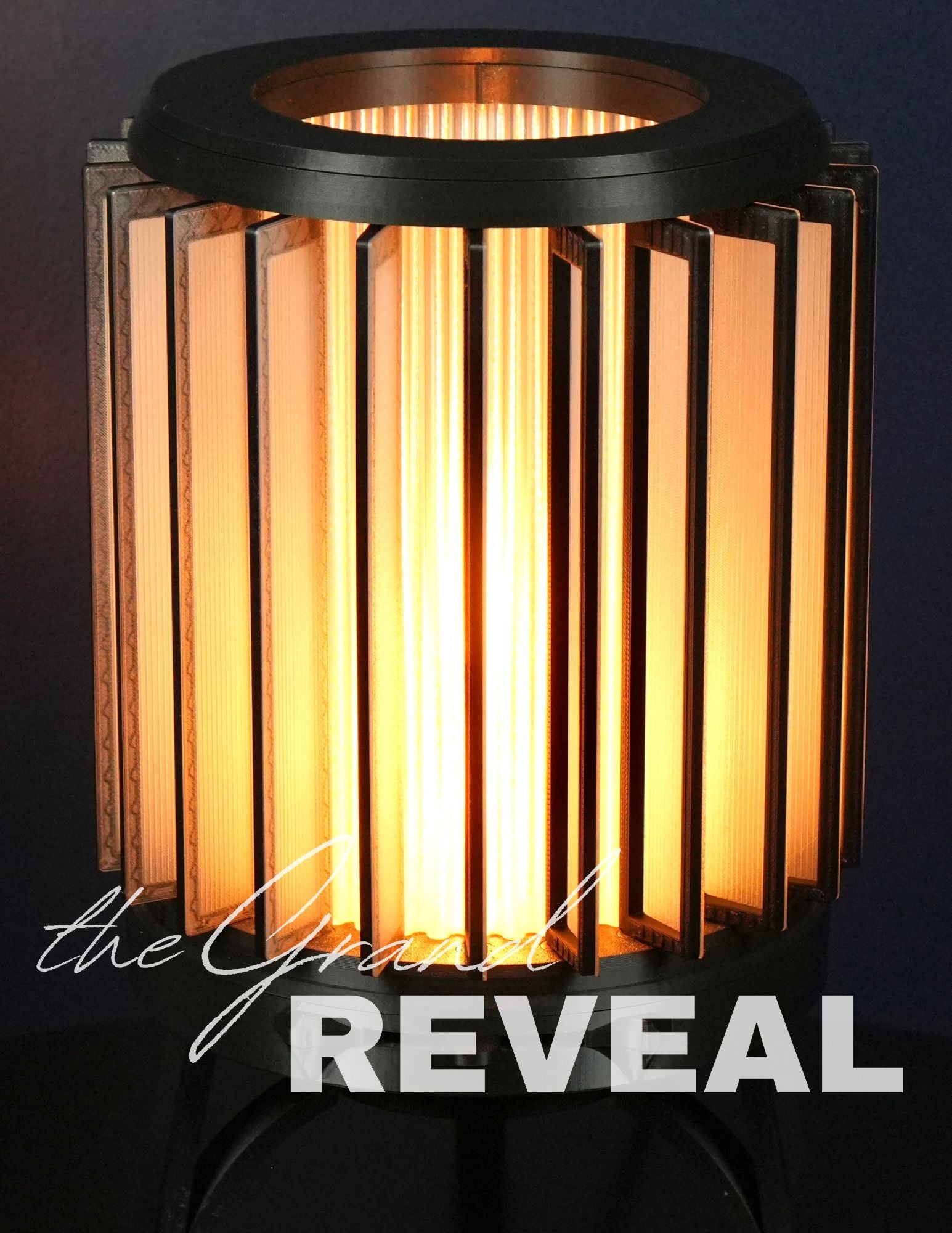

STL File - The Grand Reveal - Personal Use Only

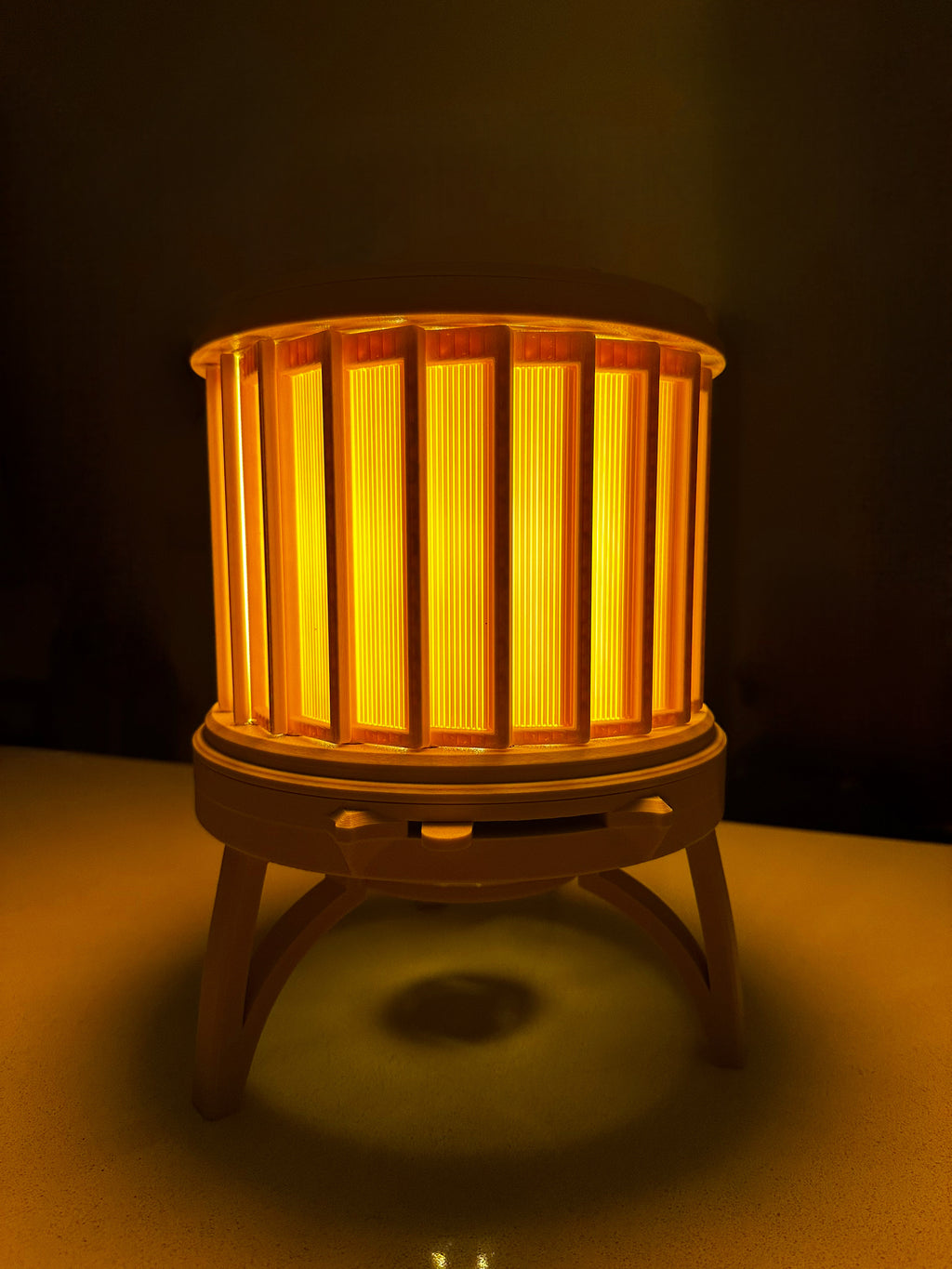

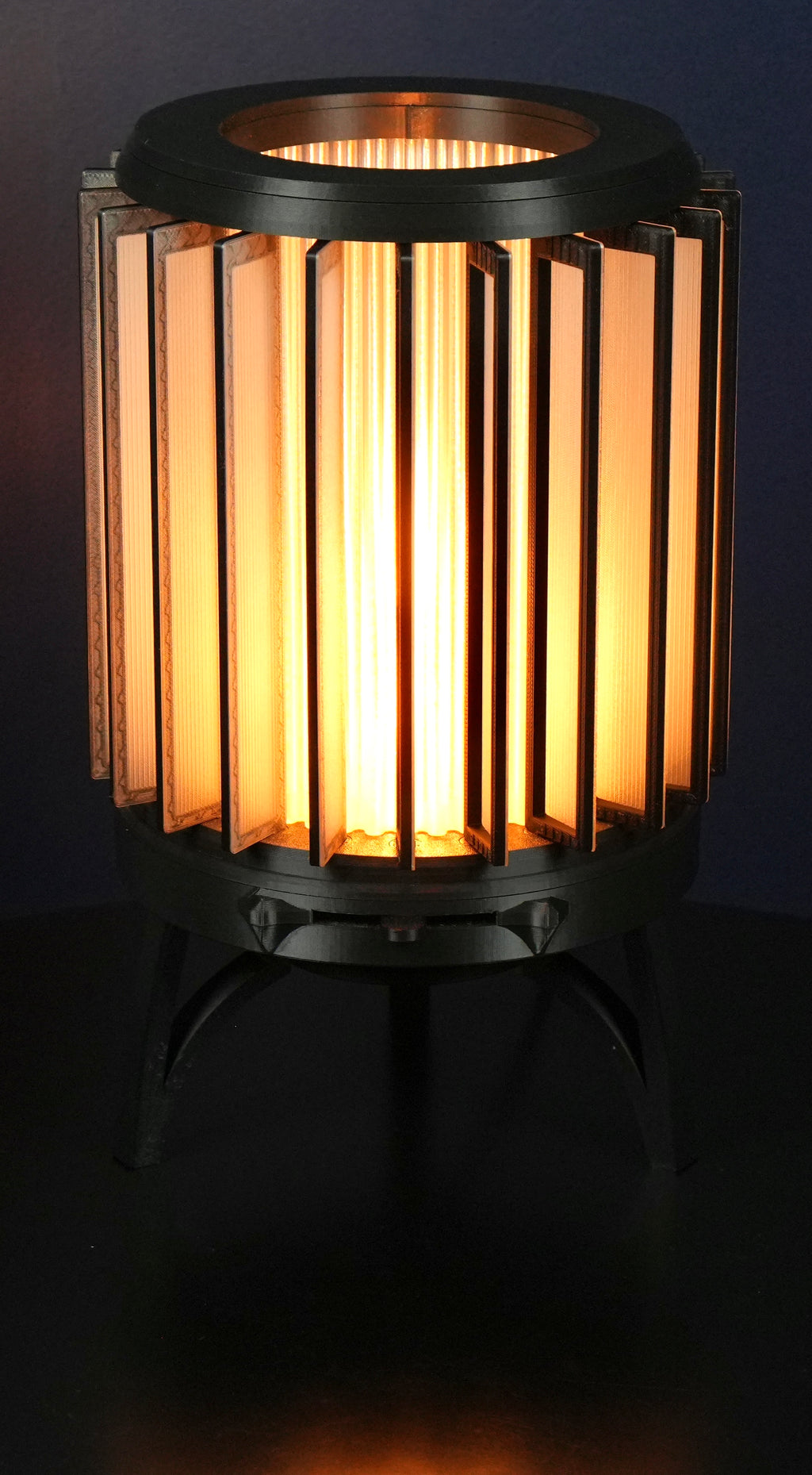

I’ve wanted to make a lamp that was unlike any other lamp out there in our reality. The Grand Reveal came from wanting to put movement into light -adding in mechanisms to interact with light. At the same time, my wife wanted a light that could be dimmed so we could wind down before bed and for night feeding our newborn baby. This lamp was designed from both a need and a desire to create something for you and I to enjoy.

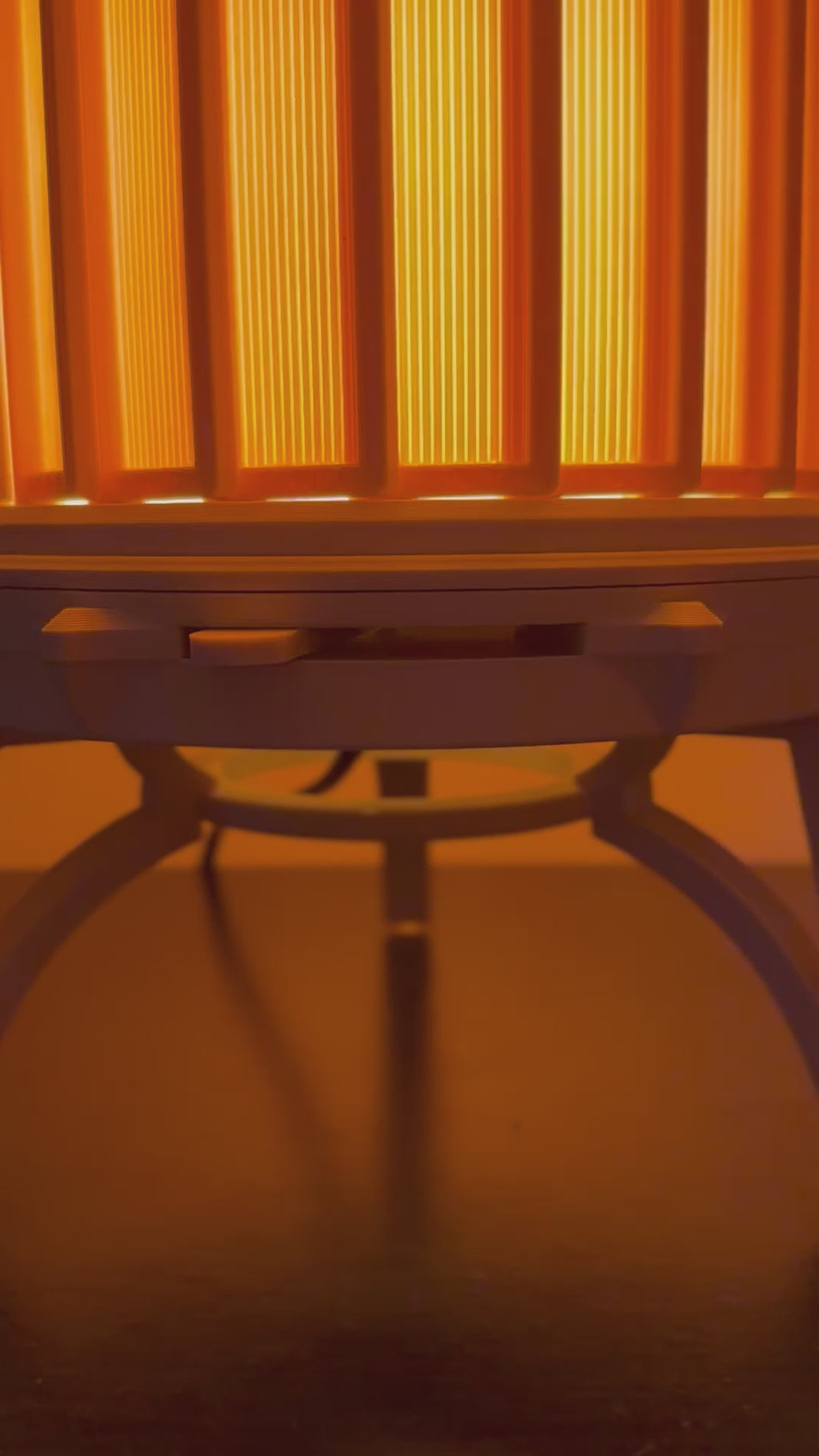

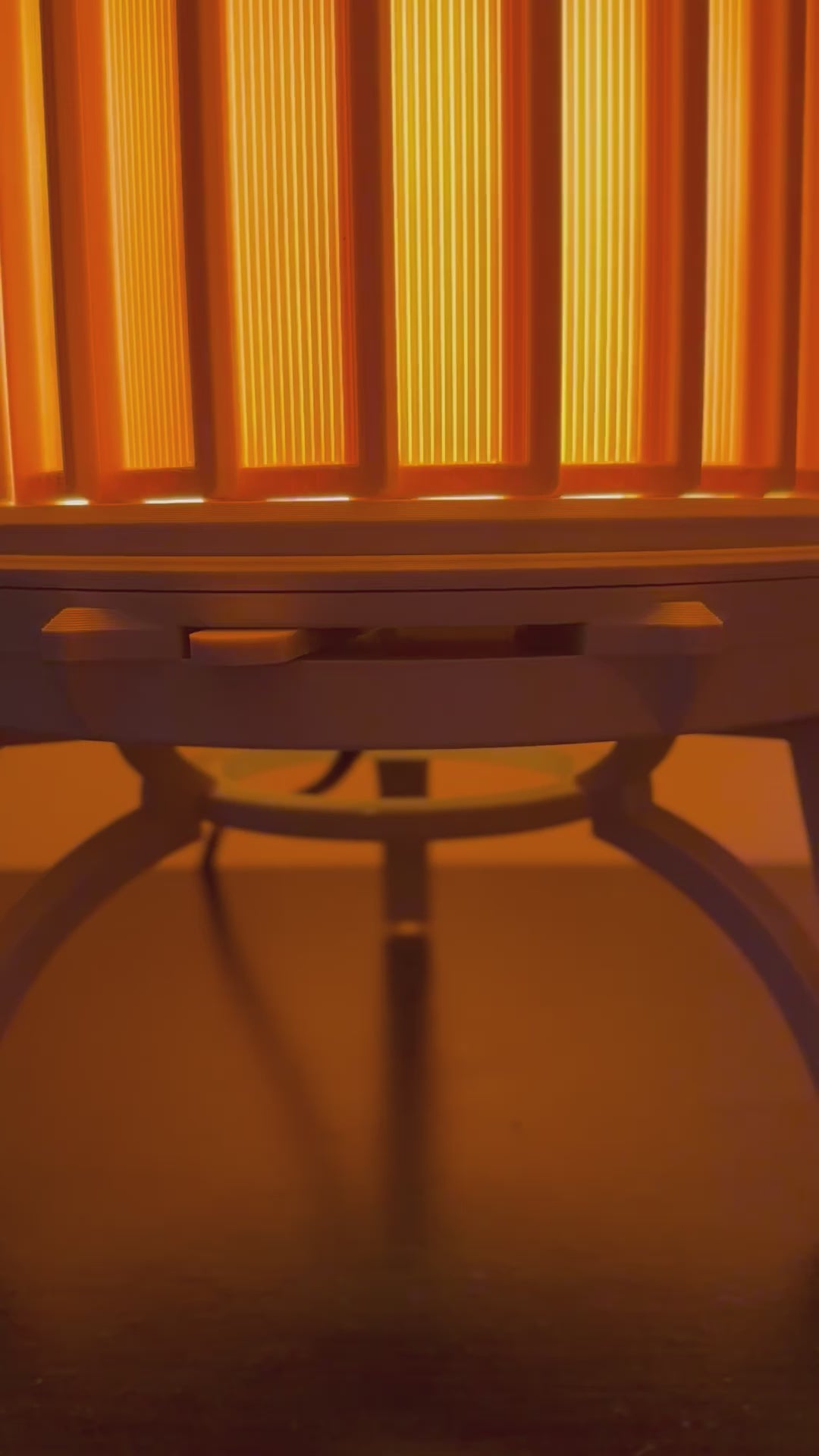

This lamp combines 3d printing and metal hardware for strength and stability. The movement is contagious, perfect for fidgeting leaving you mesmerized by the casting of light and shadow.

Hardware List     NOT INCLUDED

44 - 1/8 in. (3.175 mm) Dowels @ 7/16 in. (11.11mm Long)(You can use wood or plastic, whatever you prefer)

12 - M3 X .5 mm thread - Hex Nuts

Short Diffuser

6 - M3 - .5 mm thread - Threaded Rod

@ 5.67 in. (144.1 mm) mm Long)

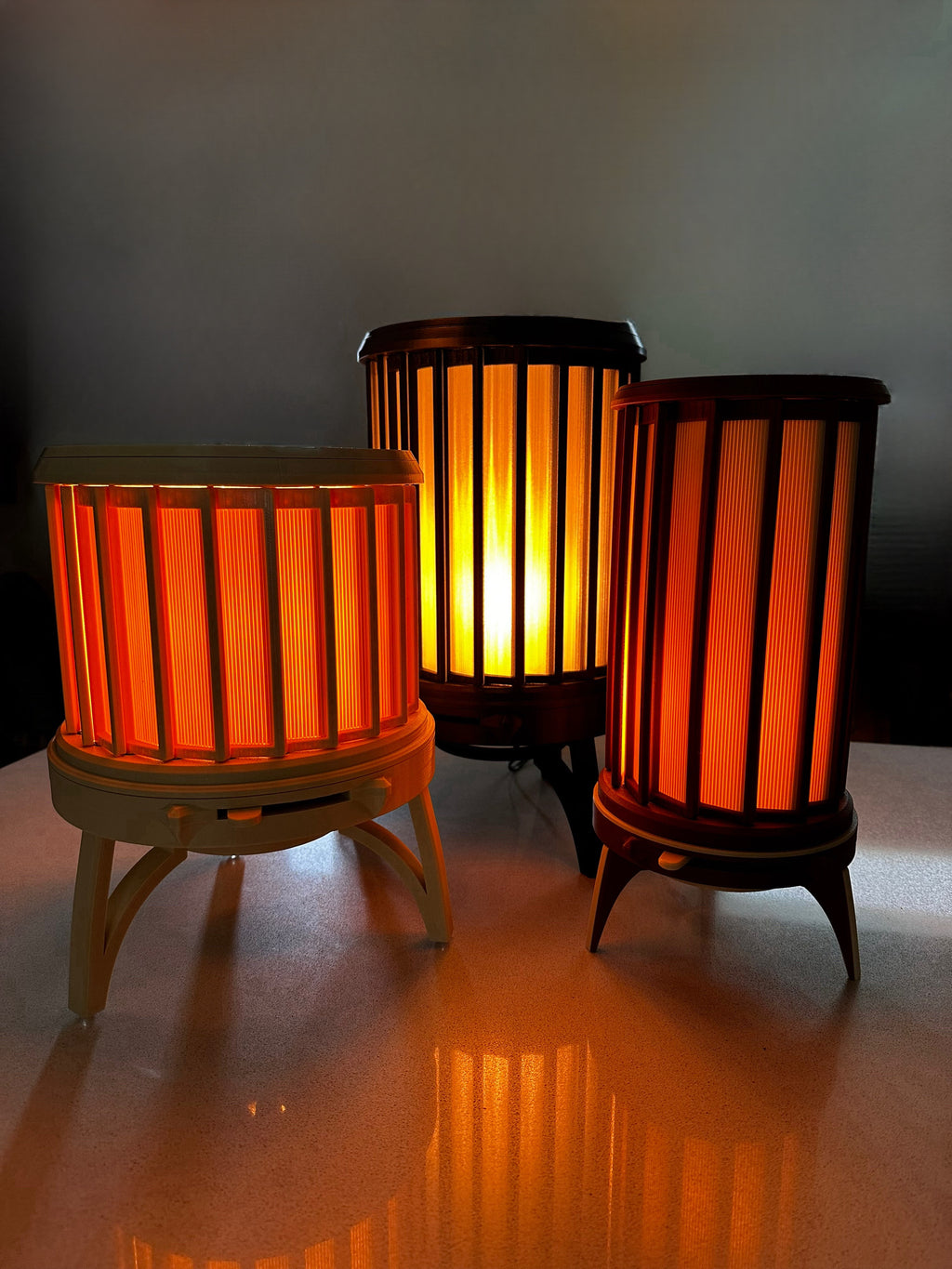

Tall Diffuser

6 - M3 - .5 mm thread - Threaded Rod

@ 8.913 in. (226.4 mm) mm Long)

***These Lengths for the Threaded Rod

are tighter tolerances for length.

SO DOUBLE CHECK THE MEASUREMENT FIRST

BEFORE CUTTING THE ROD***

6 - 1 in. (31.75 mm) #8 Pan Socket Head Screw - cut to 1 1/8 in (28.5 mm)

4 - 1/2 in. (12.7 mm) #8 Pan Socket Screw

Dimensions:
Height: 14.25 inches
Open Width: 9 inches
Closed Width: 8 inches

The Grand Reveal - Personal Use Only © 2024 by Karla & Charlie Severson is licensed under CC BY-NC-ND 4.0
