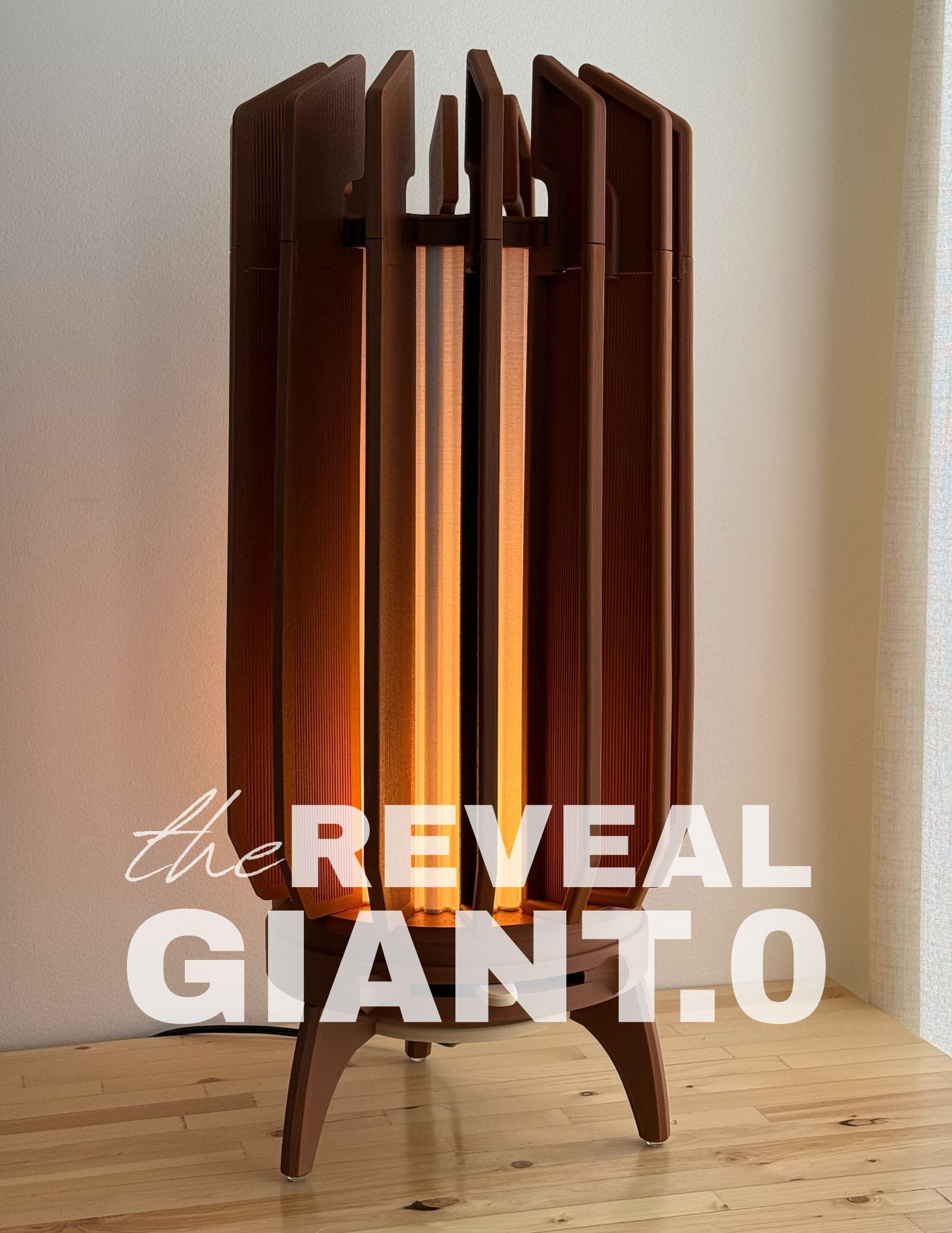

STL File: The Reveal GIANT.0 - Commercial Use

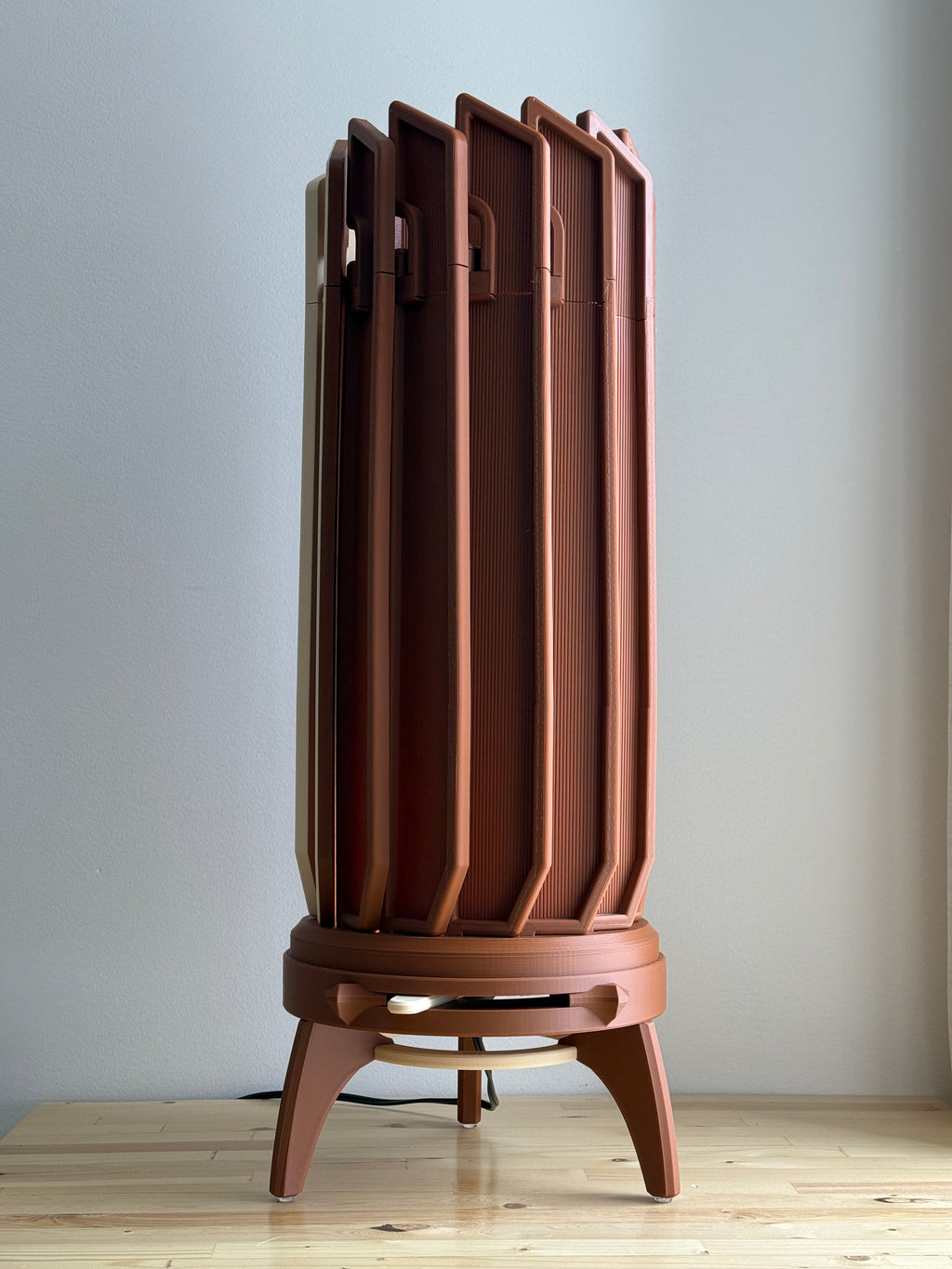

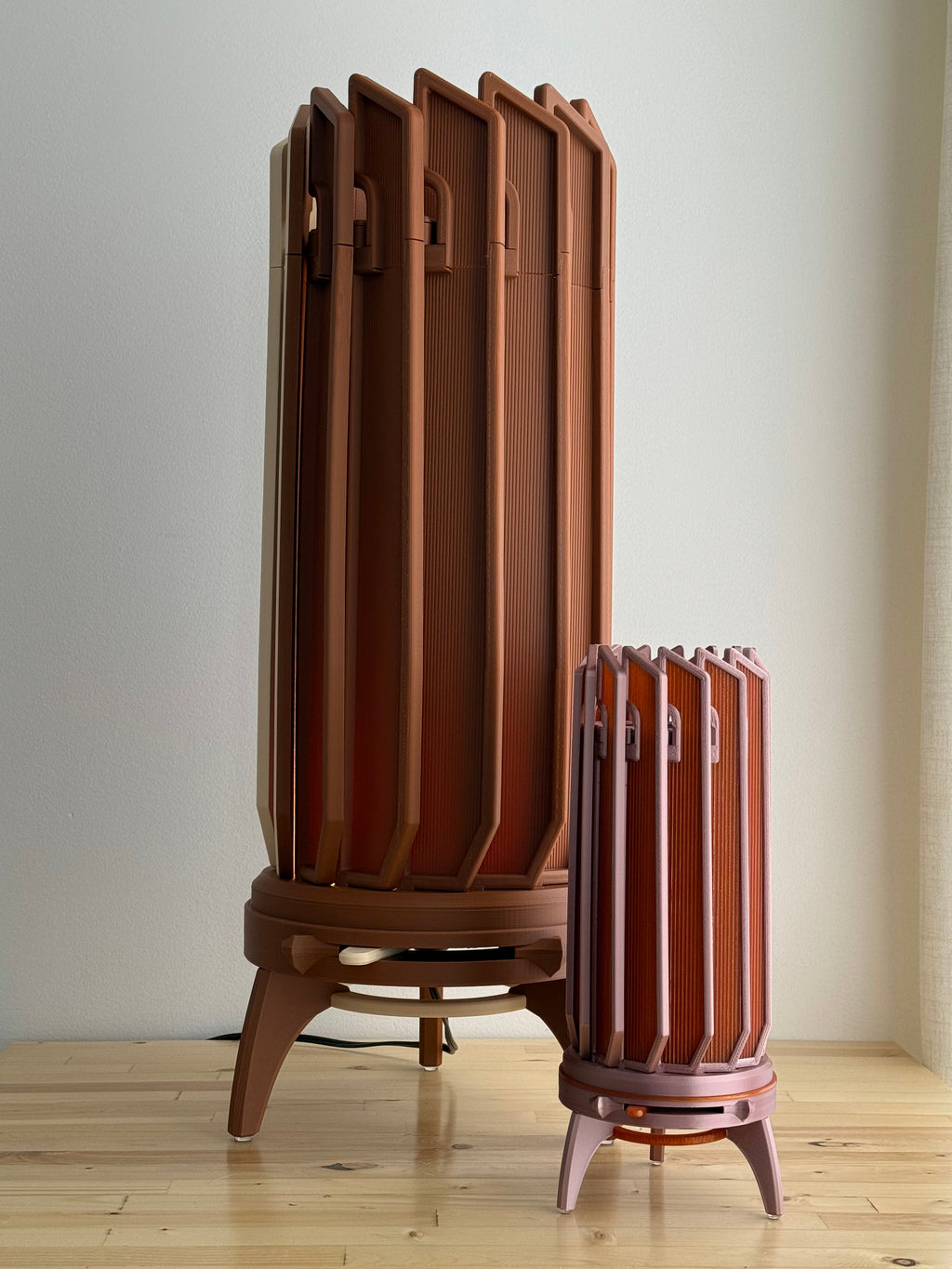

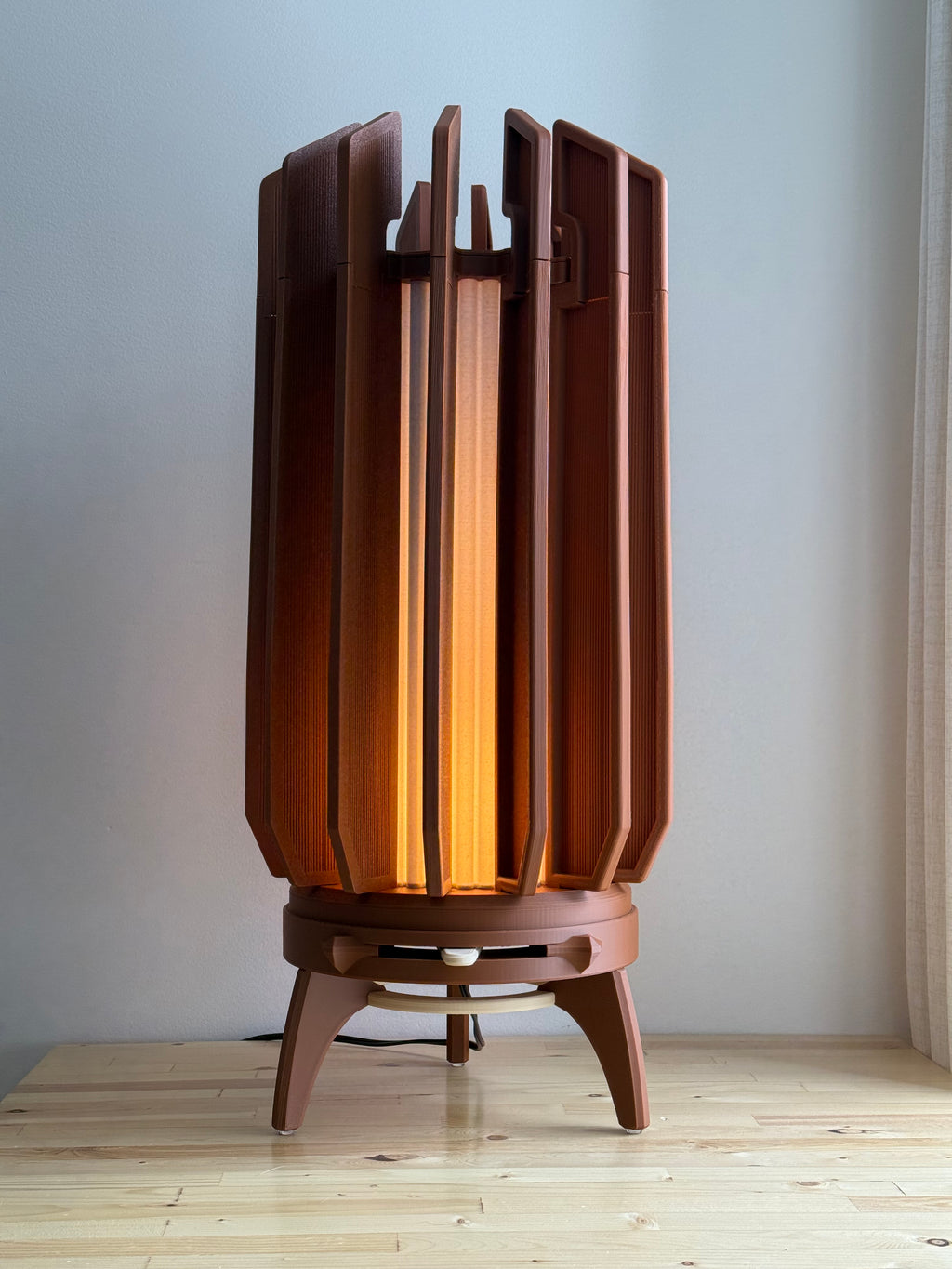

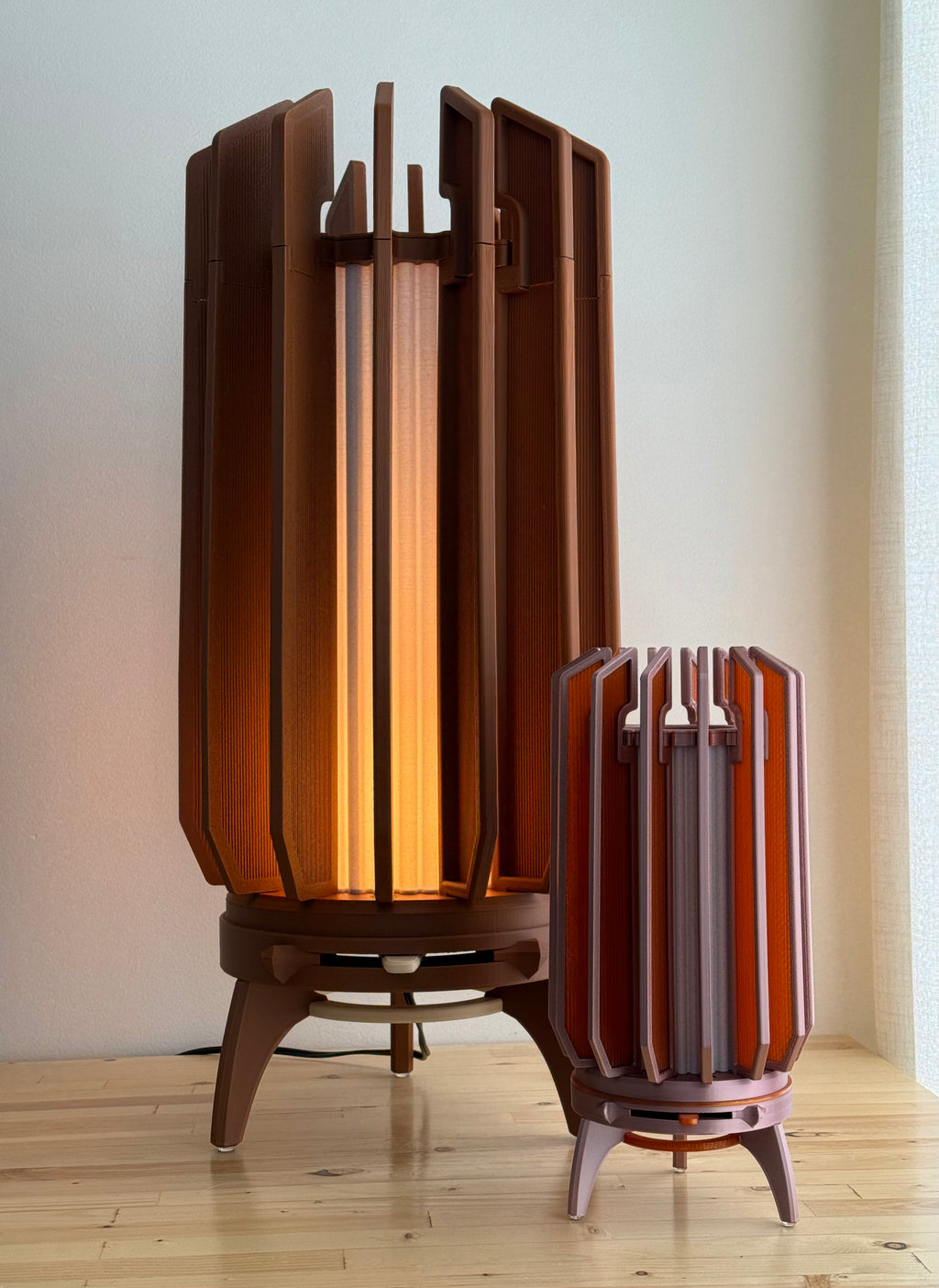

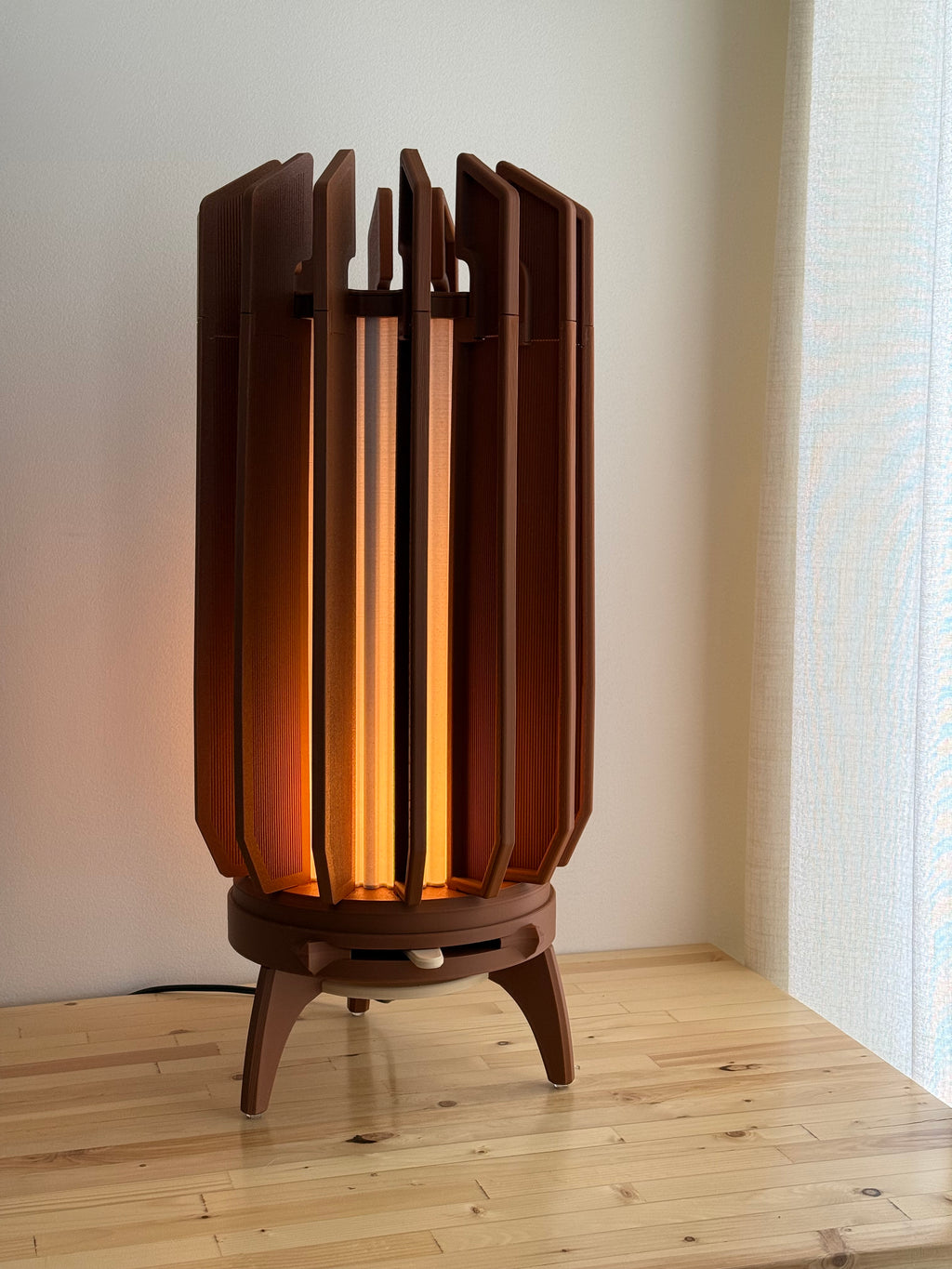

Is it a nuclear reactor? It's a vacuum cleaner filter? Could it be a turbine? No they said, it's THE REVEAL 2.0! GIANT.0 Edition!

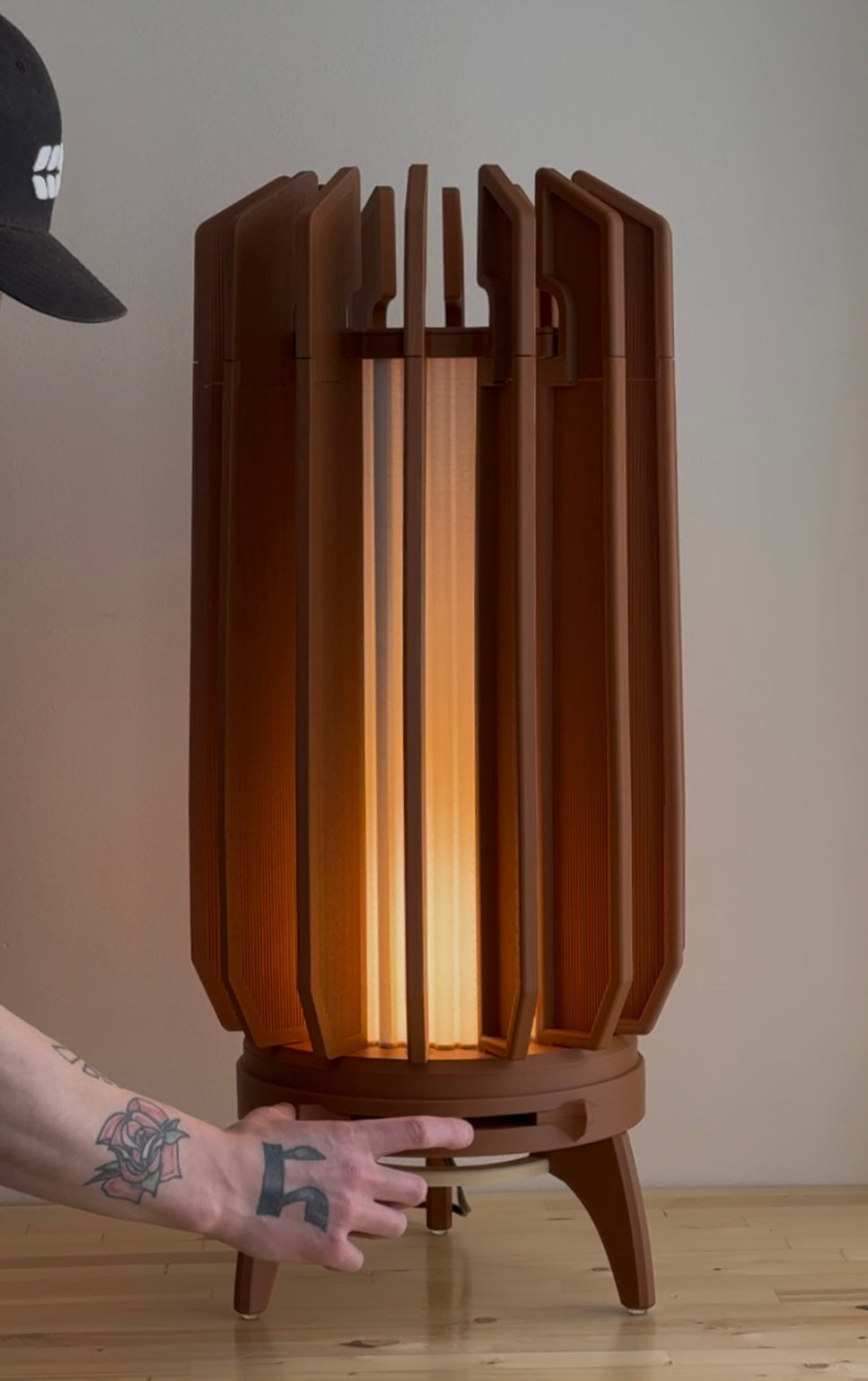

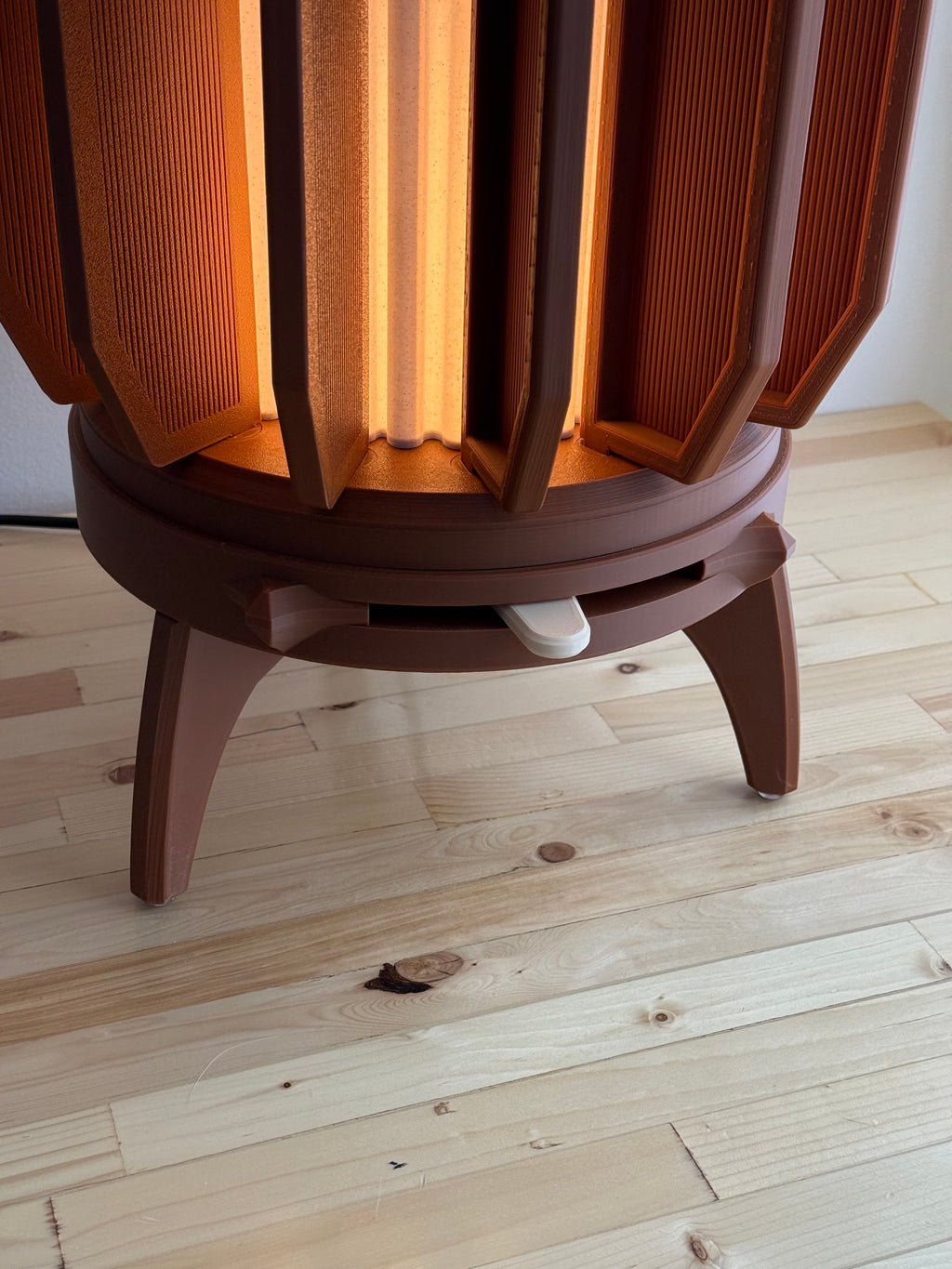

This lamp combines 3d printing and metal hardware for strength and stability. The movement is contagious, perfect for fidgeting leaving you mesmerized by the casting of light and shadow.

***This Lamp is set up for Elegoo Neptune 4 Max***

From the Slicer, the amount of filament needed is roughly: - 4.5 kg

Total Print Time: Roughly 83 hours

Hardware List

***NOT INCLUDED***

8 - 1/4-20 (7/16 inch) Equivalent to M6 - Hex Nuts

4 - 1/4-20 - (1/4 inch) Equivalent to M6 Threaded Rod @ 19 5/16 inch Long (490.5 mm Long)

*** ALWAYS DOUBLE CHECK YOUR LENGTHS BEFORE CUTTING *** PUT RODS IN PLACE BEFORE CUTTING TO VERIFY THE PROPER LENGTH ***

4 - 1.75 inch Long (45 mm) - 1/2 (12.7 mm) Bolt

3 - 1/2 inch Long (15.75 mm) - 1/2 (12.7 mm) Bolt

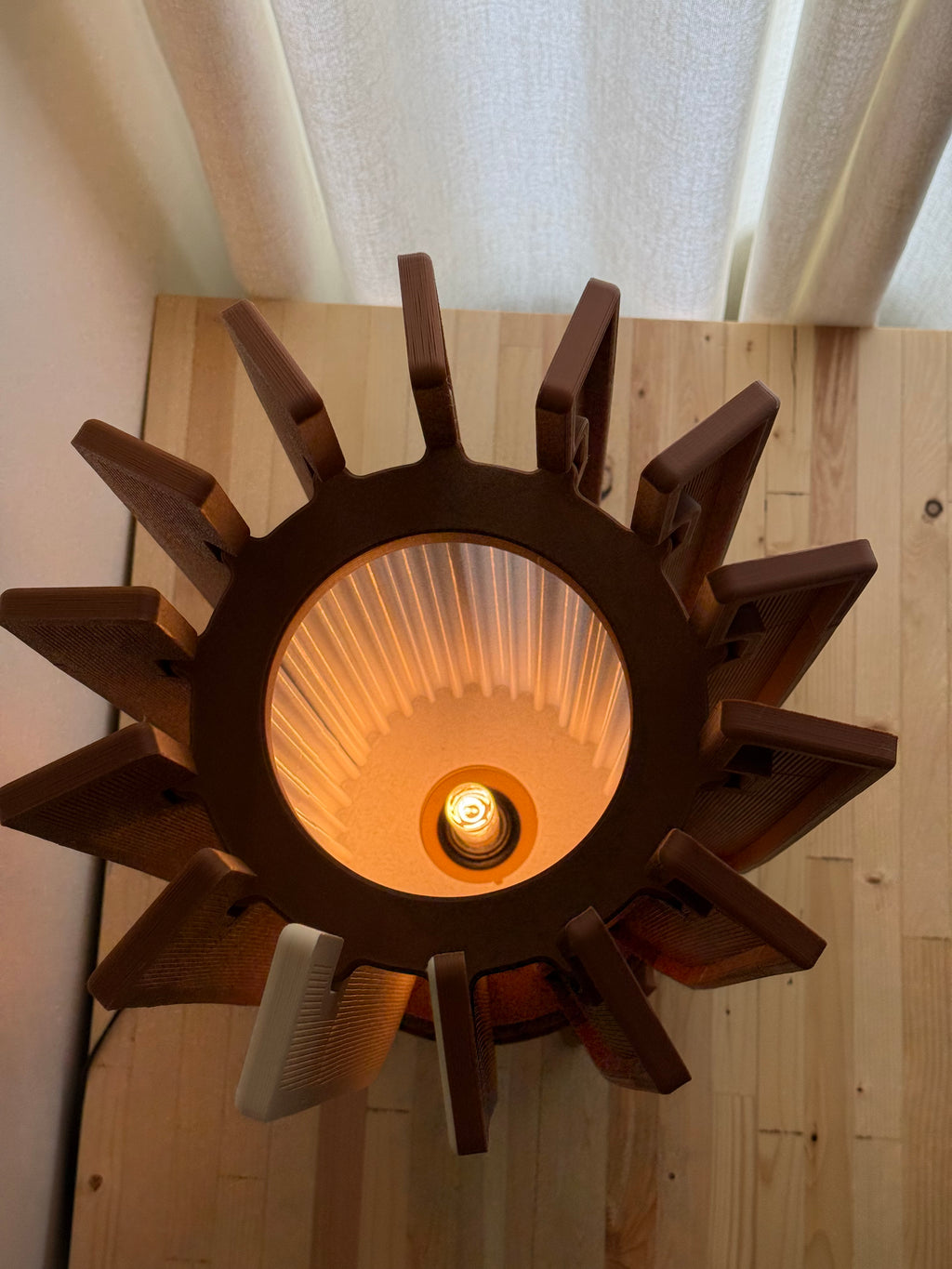

Light Source

Standard E26/27 Pendant Lamp Cord with an E26 LED Tube Light.

Dimensions:

Height: 787.4 mm (31 inches)
Fins open width: 353.8 mm (13.9 inches)
Fins closed width: 291.6 mm (11.4 inches)

The Reveal GIANT.0 - Commercial Use © 2025 by Charlie & Karla Severson is licensed under CC BY-ND 4.0
